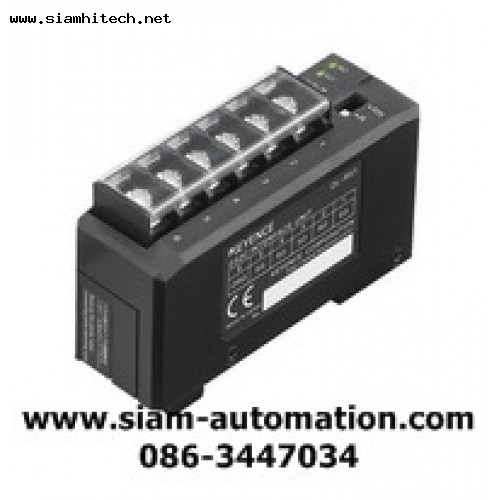

Measurement Seneor Keyence DL-RS1A-สินค้าใหม่ AIII
|
Model
|
DL-RS1A*1
|
|
Communication method
|
Full duplex
|
|
Synchronization between the transmitter and receiver
|
Asynchronous
|
|
Transmission code
|
ASCII
|
|
Baud rate
|
2400/4800/9600/19200/38400 bps selectable (Factory-setting: 9600 bps)
|
|
Data bit length
|
8 bits/7 bits selectable (Factory-setting: 8 bits)
|
|
Parity check
|
None/Even/Odd selectable (Factory-setting: None)
|
|
Stop bit length
|
1 bit
|
|
Data delimiter
|
Data reception: automatically recognizes CR or CR+LF
Data transmission: Fixed to CR+LF
|
|
Indicator
|
Communication indicator lamp (green × 2), Alarm indicator lamp (red),
Power indicator lamp (green)
|
|
Sensor
connection
specifications
|
Number of
connectable
sensor units
|
Up to 8 units (including main unit)
|
|
Rating
|
Power voltage
|
20 to 30 VDC, including ripple, Ripple (P-P): 10% max. Class 2 (Supplied via connected sensor amplifier)
|
|
Power consumption
|
25 mA max.
|
|
Environmental resistance
|
Operating temperature range
|
-10 to +55°C 14 to 131°F
|
|
Operating ambient humidity
|
35 to 85%RH (No condensation)
|
|
Vibration
|
10 to 55 Hz Double amplitude 1.5 mm 0.06" XYZ each axis: 2 hours
|
|
Material
|
Case/Polycarbonate
|
|
Weight
|
Approx 53 g
|
